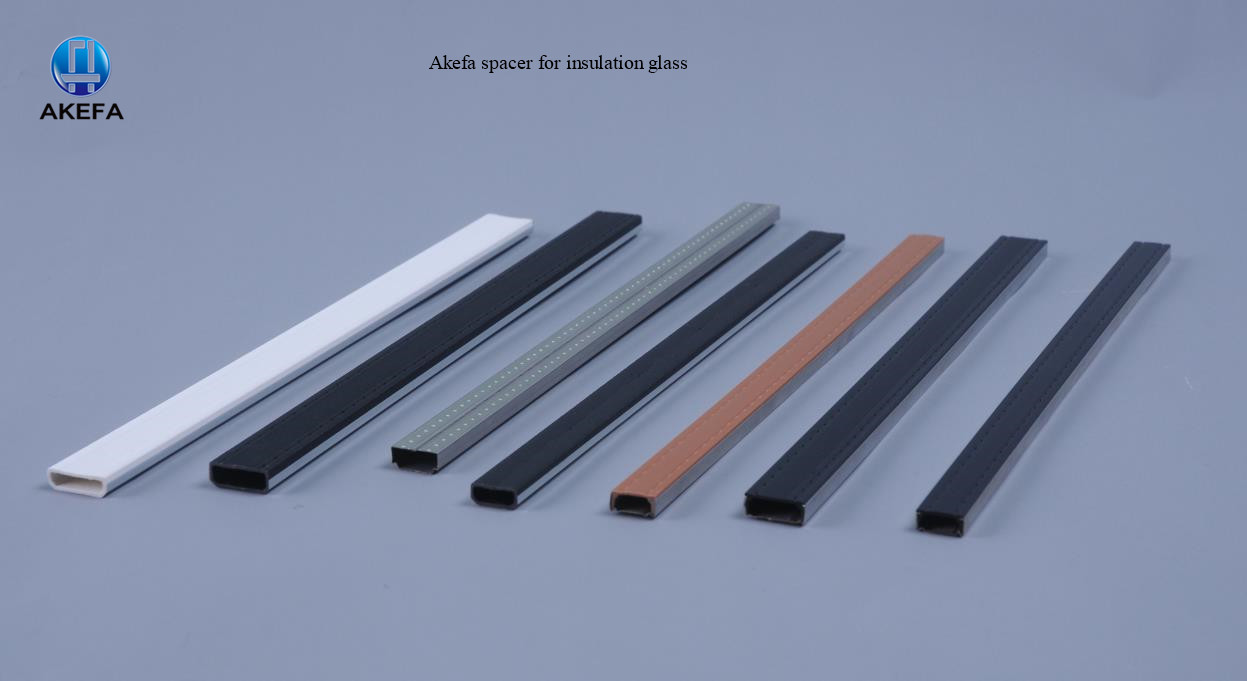

Fiberglass Spacer warm edge spacer for insulated glass 19A

Warm Edge spacer bars like AKEFA are made of an insulating plastic composite material that becomes a barrier to heat loss. Warm edge spacers reduce the amount of heat lost through the sealed unit. They keep the edge of the sealed unit warm, hence the name ‘warm edge’. As a result less heat is lost through the windows and heating bills are lower.
  • 19A

  • Akefa

  • 392590000

  • 19mm (width)X 5m( length)

Color:
Material:
Corner connector:
Availability:
Quantity:

Warm Edge spacer bars is one of the best energy saving product available on the market .  warm edge spacer is made from composite materials (UPVC medical grade) and stainless steel (316 medical grade) the perfect combination of wall thickness1mm, in the perfect air tightness at the same time to achieve a more excellent heat insulation can! Using high-end insulation materials, reducing the traditional aluminum heat loss, Improve

the energy efficiency of building windows and doors environmental protection effect.

The advantage of the warm edge of the bar:

Fire retardant, anti-condensation, anti-ultraviolet performance

Low thermal conductivity achievements of excellent insulation performance

Efficient noise and noise reduction performance

Handsome visual effects

Green energy saving

Bendable easy to operate


Feature of warm edge spacer bar for insulating glass glazing glass:

1.Thermal insulation, Energy -saving

2.Noise reduction, effectively reduce noise 40 db

3.Low temperature resistance With good anti-frosting property. High temperature

resistance

4.Ageing resistance

5.Strong sealing property

6.Comfortable and handsome

The specification of warm edge spacer bar for insulating glass glazing glass:

Model

width/mm

height/mm

length /m

packing

6A

5.5

6.8

5

CTN

9A

8.5

6.8

5

CTN

12A

11.5

6.8

5

CTN

14A

13.5

6.8

5

CTN

15A

14.5

6.8

5

CTN

16A

15.5

6.8

5

CTN

18A

17.5

6.8

5

CTN

19A

18.5

6.8

5

CTN

20A

19.5

6.8

5

CTN

24A

23.5

6.8

5

CTN

27A

16.5

6.8

5

CTN



Application of warm edge spacer bar for insulating glass ,door etc .

insulating glass, glazing glass ,double glazing ,stained glass,


Packing of our warm edge spacer bars :

Several pcs into paper or wooden box , then into container .
