14A
Akefa
392590000
13.5mm (width)X 5m( length)
Color: | |
---|---|
Material: | |
Corner connector: | |
Availability: | |
Quantity: | |

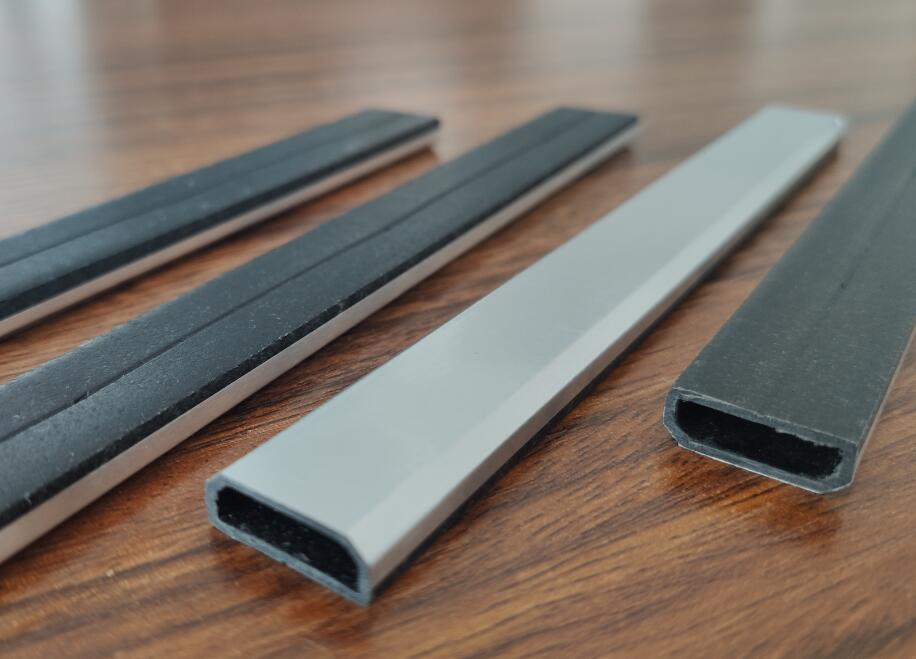

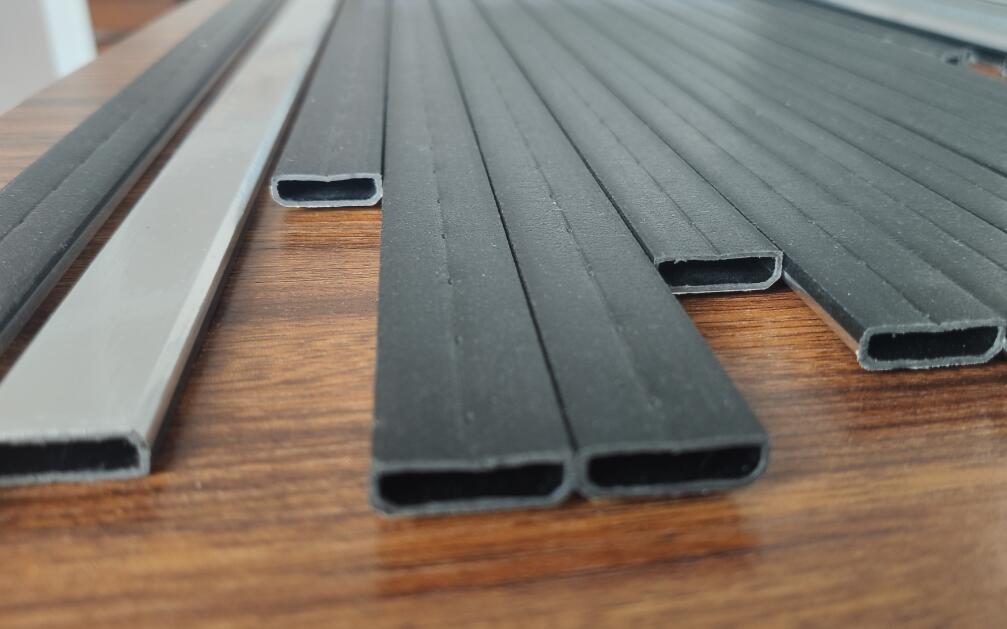

Warm Edge spacer bars is one of the best energy saving product available on the market . warm edge spacer is made from composite materials (UPVC medical grade) and stainless steel (316 medical grade) the perfect combination of wall thickness1mm, in the perfect air tightness at the same time to achieve a more excellent heat insulation can! Using high-end insulation materials, reducing the traditional aluminum heat loss, Improve
the energy efficiency of building windows and doors environmental protection effect.
The advantage of the warm edge of the bar:
Fire retardant, anti-condensation, anti-ultraviolet performance
Low thermal conductivity achievements of excellent insulation performance
Efficient noise and noise reduction performance
Handsome visual effects
Green energy saving
Bendable easy to operate
Warm Edge spacer bars is one of the best energy saving product available on the market . warm edge spacer is made from composite materials (UPVC medical grade) and stainless steel (316 medical grade) the perfect combination of wall thickness1mm, in the perfect air tightness at the same time to achieve a more excellent heat insulation can! Using high-end insulation materials, reducing the traditional aluminum heat loss, Improve
the energy efficiency of building windows and doors environmental protection effect.
The advantage of the warm edge of the bar:
Fire retardant, anti-condensation, anti-ultraviolet performance
Low thermal conductivity achievements of excellent insulation performance
Efficient noise and noise reduction performance
Handsome visual effects
Green energy saving
Bendable easy to operate
Feature of warm edge spacer bar for insulating glass glazing glass:
1.Thermal insulation, Energy -saving
2.Noise reduction, effectively reduce noise 40 db
3.Low temperature resistance With good anti-frosting property. High temperature
resistance
4.Ageing resistance
5.Strong sealing property
6.Comfortable and handsome
Feature of warm edge spacer bar for insulating glass glazing glass:
1.Thermal insulation, Energy -saving
2.Noise reduction, effectively reduce noise 40 db
3.Low temperature resistance With good anti-frosting property. High temperature
resistance
4.Ageing resistance
5.Strong sealing property
6.Comfortable and handsome
The specification of warm edge spacer bar for insulating glass glazing glass:
Model | width/mm | height/mm | length /m | packing |
6A | 5.5 | 6.8 | 5 | CTN |
9A | 8.5 | 6.8 | 5 | CTN |
12A | 11.5 | 6.8 | 5 | CTN |
14A | 13.5 | 6.8 | 5 | CTN |
15A | 14.5 | 6.8 | 5 | CTN |
16A | 15.5 | 6.8 | 5 | CTN |
18A | 17.5 | 6.8 | 5 | CTN |
19A | 18.5 | 6.8 | 5 | CTN |
20A | 19.5 | 6.8 | 5 | CTN |
24A | 23.5 | 6.8 | 5 | CTN |
27A | 16.5 | 6.8 | 5 | CTN |
The specification of warm edge spacer bar for insulating glass glazing glass:
Model | width/mm | height/mm | length /m | packing |
6A | 5.5 | 6.8 | 5 | CTN |
9A | 8.5 | 6.8 | 5 | CTN |
12A | 11.5 | 6.8 | 5 | CTN |
14A | 13.5 | 6.8 | 5 | CTN |
15A | 14.5 | 6.8 | 5 | CTN |
16A | 15.5 | 6.8 | 5 | CTN |
18A | 17.5 | 6.8 | 5 | CTN |
19A | 18.5 | 6.8 | 5 | CTN |
20A | 19.5 | 6.8 | 5 | CTN |
24A | 23.5 | 6.8 | 5 | CTN |
27A | 16.5 | 6.8 | 5 | CTN |
Application of warm edge spacer bar for insulating glass ,door etc .
insulating glass, glazing glass ,double glazing ,stained glass,
Application of warm edge spacer bar for insulating glass ,door etc .
insulating glass, glazing glass ,double glazing ,stained glass,
Packing of our warm edge spacer bars :
Several pcs into paper or wooden box , then into container .
Packing of our warm edge spacer bars :
Several pcs into paper or wooden box , then into container .
