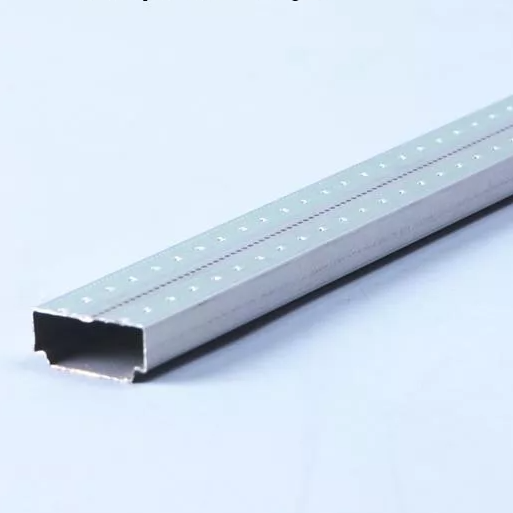

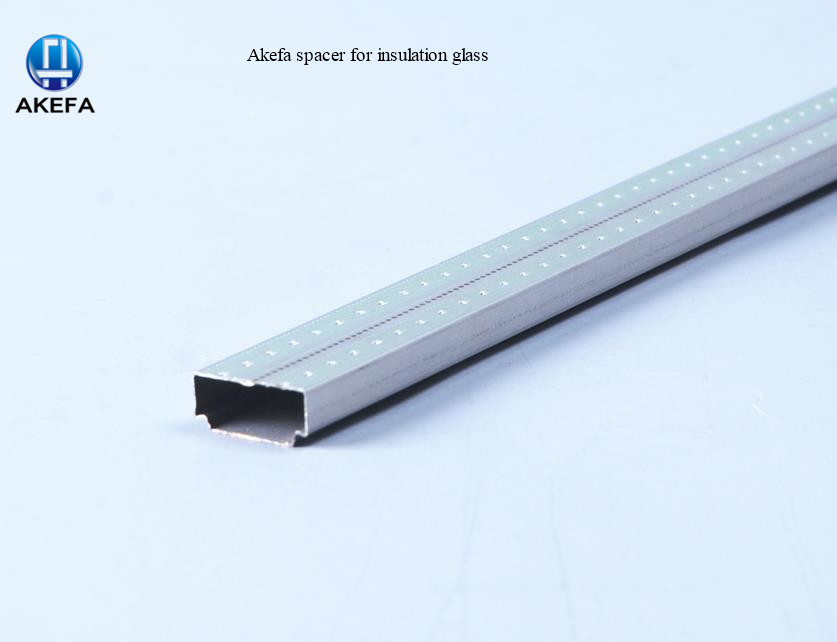

Stainless Steel Warm Edge Spacer Bar 20A

AKEFA has two kinds of warm edge spacer , one is made from composite of stainless steel and AGR, another is made from Glass fiber with PP material ,which has high performance thermal insulation . it is superior than aluminum alloy warm edge spacer bar.
  • 20A

  • Akefa

  • AK-SS-020

  • 19.5mm (width)X 5m( length)

Availability:
Quantity:

Warm Edge spacer bars like AKEFA are made of an insulating plastic composite material that becomes a barrier to heat loss. Warm edge spacers reduce the amount of heat lost through the sealed unit. They keep the edge of the sealed unit warm, hence the name ‘warm edge’. As a result less heat is lost through the windows and heating bills are lower.

The advantage of the warm edge of the bar:

Fire retardant, anti-condensation, anti-ultraviolet performance

Low thermal conductivity achievements of excellent insulation performance

Efficient noise and noise reduction performance

Handsome visual effects

Green energy saving

Bendable easy to operate



Feature of warm edge spacer bar for insulating glass glazing glass:

1.Thermal insulation, Energy -saving

2.Noise reduction, effectively reduce noise 40 db

3.Low temperature resistance With good anti-frosting property. High temperature

resistance

4.Ageing resistance

5.Strong sealing property

6.Comfortable and handsome


Model

width/mm

height/mm

length /m

Color

6A

5.5

6.5

5

Black

9A

8.5

6.5

5

Black

12A

11.5

6.5

5

Black

14A

13.5

6.5

5

Black/brown

15A

14.5

6.5

5

Black

16A

15.5

6.8

5

Black

18A

17.5

6.5

5

Black

19A

18.5

6.5

5

Black

20A

19.5

6.5

5

Black

22A

21.5

6.5

5

Black

24A

23.5

6.5

5

Black

27A

16.5

6.5

5

Black


Application of warm edge spacer bar for insulating glass ,door etc .

insulating glass, glazing glass ,double glazing ,stained glass,


Packing of our warm edge spacer bars :

Several pcs into paper or wooden box , then into container .
