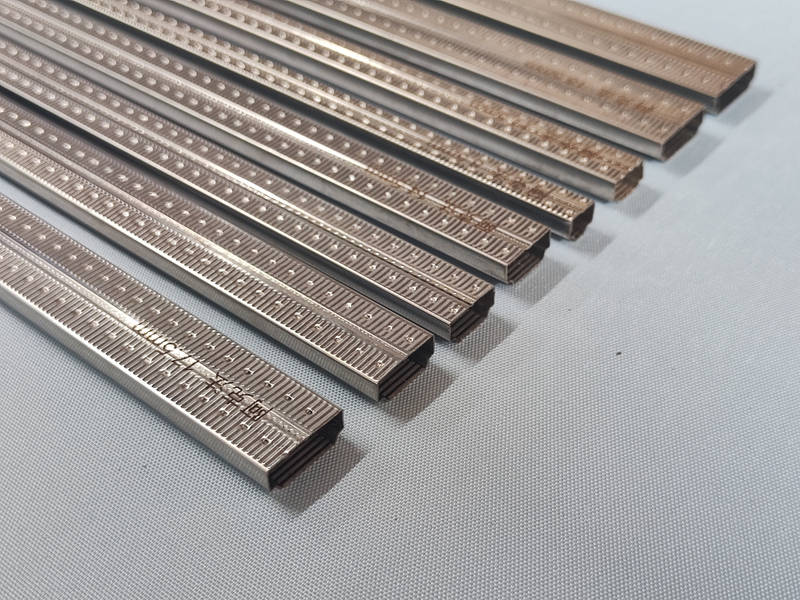

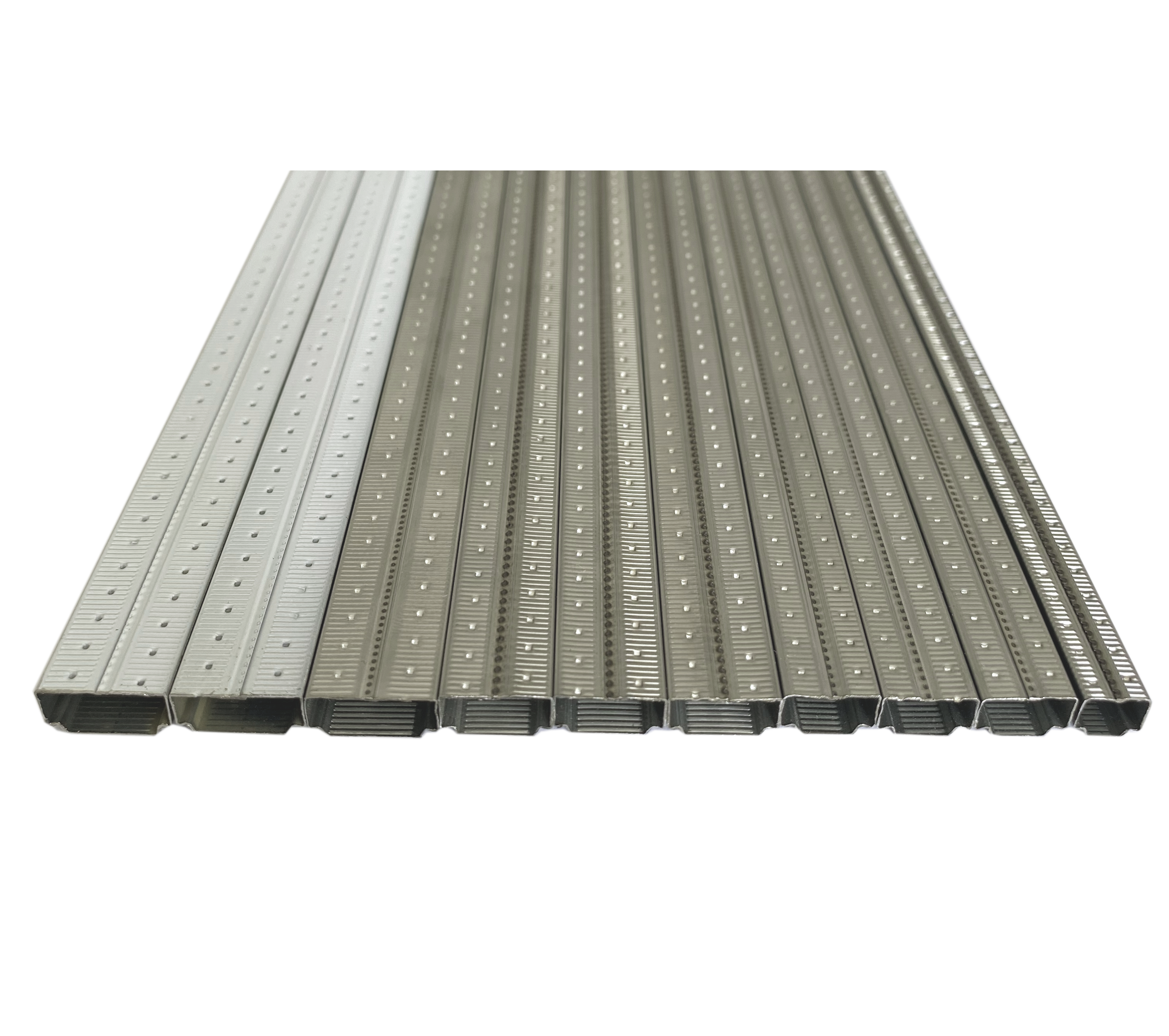

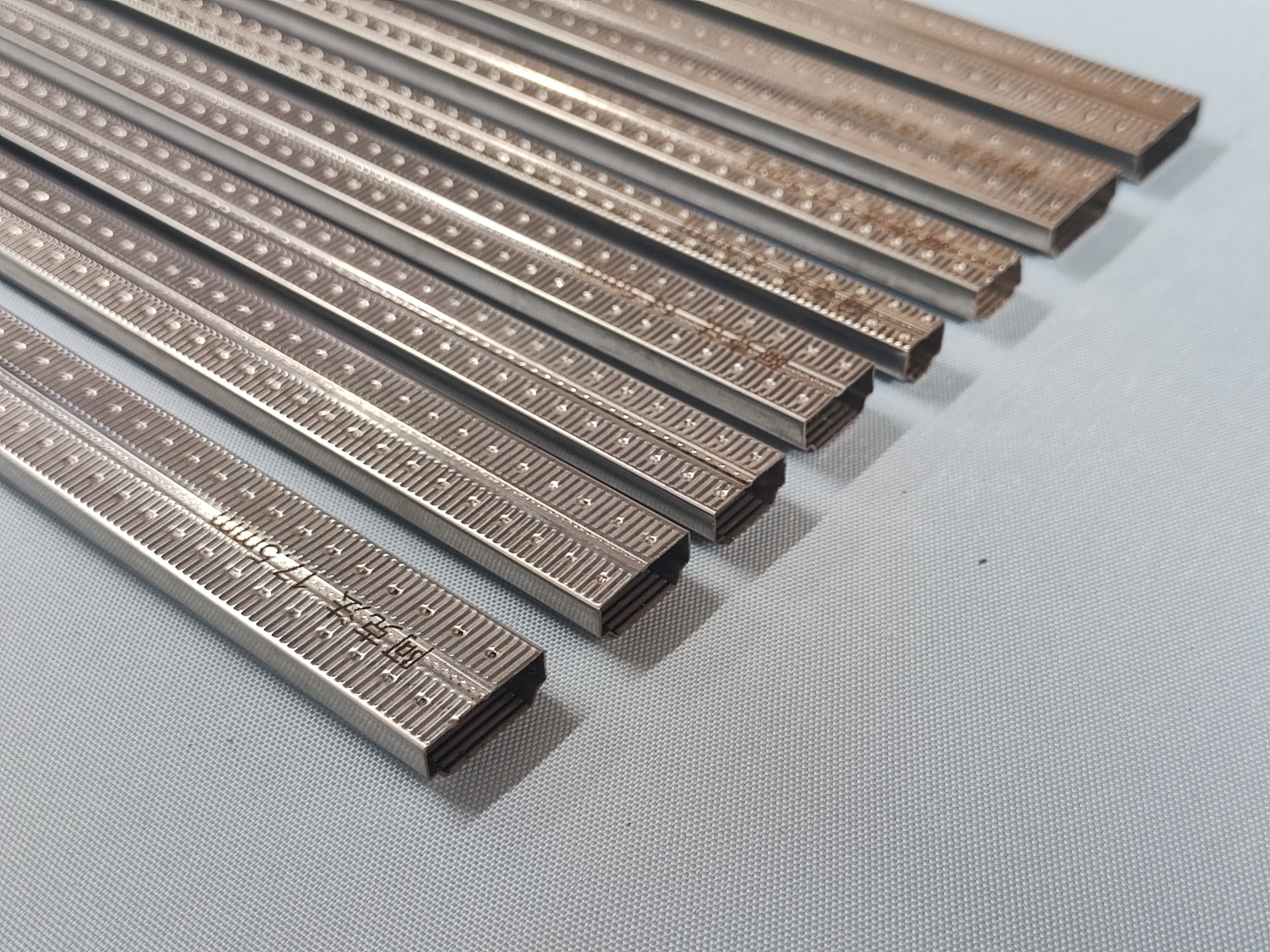

Steel Warm Edge Spacer 16A for insulation glass

AKEFA has two kinds of warm edge spacer , one is made from composite of stainless steel and UPVC , another is made from Glass fiber with PP material ,which has high performance thermal insulation . it is superior than aluminum alloy warm edge spacer bar.
  • 12A
  • Akefa
  • AK-SS-08
  • 11.5mm (width)X 5m( length)
Availability:
Quantity:

The stainless steel warm edge spacer is made of a unique metal material, which is a high-performance glass spacer product, aiming at improving the glass edge and overall performance.

The company adopts mori (Japan Mori Seiji) equipment, the wall thickness of the raw stainless steel material is 0.15mm, the thermal conductivity is about 0.4-0.5w/mk, and the thermal insulation performance is closer to the composite warm edge spacer strip, which can effectively reduce the equivalent thermal conductivity of the glass; the laser spot welding technology is adopted, the stress is relatively small, the friction of sharp objects on the molecular sieve is reduced, the permeability is high, and molecular sieve will not be caused Leakage of screen powder.



Feature of warm edge spacer bar for insulating glass glazing glass:

Performance advantages:

1. Excellent fire resistance, melting point of stainless steel at 1500 ° C

2. Flexible and easy to bend, can make any shape

3. Good adhesive compatibility does not react with glass coating

4. High retention rate of argon gas can effectively improve the performance of insulating glass and prolong its service life



TYPE

Section width(W)

section height(H)

Length

packing

9A

8.5mm

6.8mm

5m

carton

12A

11.5mm

6.8mm

5m

carton

16A

15.5mm

6.8mm

5m

carton

18A

17.5mm

6.8mm

5m

carton


Application of warm edge spacer bar for insulating glass ,door etc .

insulating glass, glazing glass ,double glazing ,stained glass,


Packing of our warm edge spacer bars :

Several pcs into paper or wooden box , then into container .
